12-Head Embroidery Machine HCR3-1512-45 HAP-HCR3-1512

    Get your price on the 12-Head Embroidery Machine HCR3-1512-45

    New Happy Japan equipment is priced by quote. Tell us how you want it set up and we'll send you your price, with freight, installation and training options.

    Shipping, crating and installation are not included in the equipment price. Get a freight estimate to your ZIP code in the quote form. Installation and training are priced on request.

    Get your price   Estimate shipping   Apply for financing   or call 480-229-7806

    The latest technology in multi-head machines.  With servo drive system, improvements to the sewing head, as well as durability, stability, and ergonomic upgrades, this is Happy’s fastest, most capable 12-head ever.  For those looking for the ultimate in embroidery production capability, we give you HAPPY’s HCR3-1512.

    Performance

    • Configuration: 12 heads, 15 needles per head
    • Max speed (normal) 1,000spm; cap sewing: 750spm.
    • Max needle distance: 360mm
    • Memory capacity: 3,000 designs or up to 100 million stitches, 250 color changes per design

    Embroidery Sewing Field Per Head

    • Max needle distance: 450mm x 360mm (17.5″ x 14.2″)
    • Tubular frame field: 320mm x 320mm (12.5″ x 12.5″)
    • Ballcaps: 80mm x 360mm (3″ x 14″)

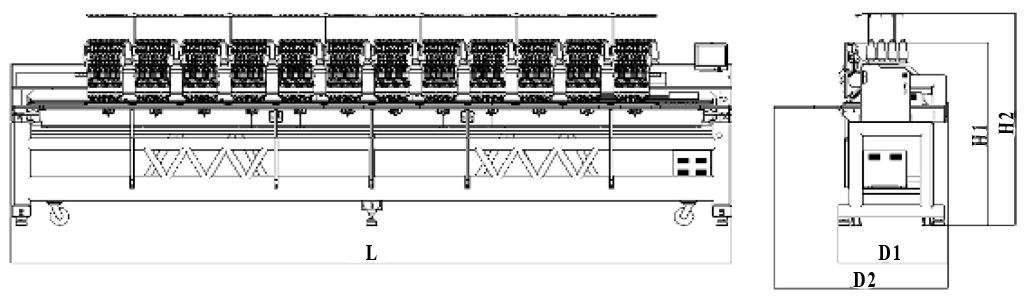

    Key Outer Dimensions (see illustration above)

    • L (Length): 17.72 feet
    • D1 (depth w/o table): 32.6 in
    • D2 (depth w/ table): 52.0 in
    • H1 (height w/o thread tree): 59.2 in
    • H2 (height w/ thread tree): 68.1 in

    Power Requirements

    • Power type: 22ov single-phase AC, freq. 50/60hz

    INCLUDED WITH MACHINE
    (as purchased new from TEXMAC)

    • Full set of tubular hoops, 2 of each size per sewing head:
      • 24ea. 12cm round hoops
      • 24ea. 15cm round hoops
      • 24ea. 18cm round hoops
      • 24ea. 32cm square hoops
    • Full cap sewing equipment: quick-change sash set and drivers, 24 cap hoops (2 per head).  Auto-design rotation on entering cap mode
    • Operator’s toolkit and manuals
    • Heavy-duty casters and height-adjustable feet
    • Installation, setup, telephone and internet support from TEXMAC
    • 5-year limited warranty on all HAPPY HCR multi-head embroidery machines

    Multi-Head Machines have a 10″ touch screen panel that is packed with features!

    • The 10″ touch screen has a vivid LCD interface
    • Easy Design Placement- Shows hoop as related to the design
    • Displays your key sewing information at a Glance
    • Customize your screen the way you want
    • Easily place the Applications that you use most on the main screen
    • One touch frame out for easy Applique
    • Easy Design trace
    • Full Built-in Networking and USB ports
    • Auto Error correction for the most common issues
    • One touch Firmware updates
    • Advanced Control over every aspect of your sewing experience-
    • Speed
    • position
    • Color Sequence/ Change
    • And Much More!
